85-89 trx/atc250r Durablue X-33 axle with billet hubs
)
Product Description

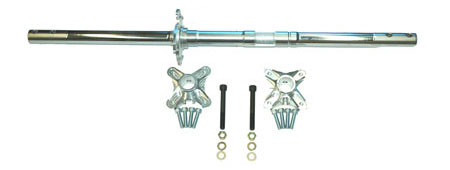

X-33 Axle
The X-33 axle is a truely innovative axle design. The X-33 uses the same superior material and heat treating as the Eliminator. The unique difference is in the design. Standard design ATV axles neck down to about 1" in diameter. A splined wheel hub slides onto the axle shaft and is retained with a hex nut. As all ATVer's know, hubs loosen frequently. The X-33 changes all that. The wheel hub is clamped solid and driven by a pin on a 1-3/8" diameter shaft. This axle is rifled to reduce weight near the rotational axis of the ATV. The "straight bar" X-33 axle has no narrow or weak areas that can be prone to breaking.
This axle allows 16 different wheel offset alternatives. It comes with a Warranty to Original Purchaser against bending or breaking (see WARRANTY for details).
1985 year models must use 1986 sprocket and bolts
The X-33 axle is a truely innovative axle design. The X-33 uses the same superior material and heat treating as the Eliminator. The unique difference is in the design. Standard design ATV axles neck down to about 1" in diameter. A splined wheel hub slides onto the axle shaft and is retained with a hex nut. As all ATVer's know, hubs loosen frequently. The X-33 changes all that. The wheel hub is clamped solid and driven by a pin on a 1-3/8" diameter shaft. This axle is rifled to reduce weight near the rotational axis of the ATV. The "straight bar" X-33 axle has no narrow or weak areas that can be prone to breaking.
This axle allows 16 different wheel offset alternatives. It comes with a Warranty to Original Purchaser against bending or breaking (see WARRANTY for details).
1985 year models must use 1986 sprocket and bolts
